- Secure and Reliable:Complied with GB/CE/ANSI and other standards;The main structural components are welded and electrophoretic automatically, which are rust resistant and durable;Standard height limit anti-collision rods for safer operation.
- Intelligent and Efficient:Automatic display of fault codes for quick troubleshooting; -Proportional decrease control, smooth and flexible operation; Large ground clearance, maximum gradeability 25%; Intelligent interconnection, real-time monitoring of working condition data.
- Better Total Cost of Ownership:The generalization rate of parts and accessories reaches 95%, and few categories of spare parts need to reserve;Maintenance-free AC motors; Low power alarm and other machine control systems+lithium battery management system (BMS), improving the life of battery.

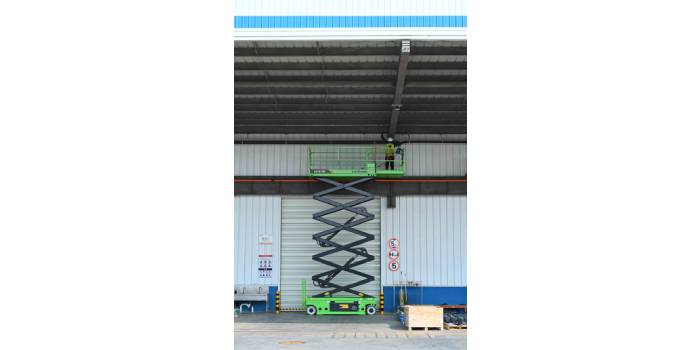

LS1412H
Max.Working Height:
15.7m
Rated Load on Working Platform:
250kg
Overall Length/Width:
2.84*1.25m
Product Features
LS1412H
Specifications
| Max.Work Height | 15.7 m |
| Max.Platform Height | 13.7 m |
| Min.Platform Height | 1.48 m |
| Platform Size（L×W） | 2.64 x 1.15m |
| Overall Length | 2.84 m |
| Overall Width | 1.25 m |
| Overall Height (Rails Down) | 2.06 m |
| Max.Gradeability | 25% |
| Lift Motor | 24VAC/3.3kW |
| Rated Load on Working Platform | 250 kg |
| Battery | 24V/270Ah |
| Charger | 24V/30A |
| Total Weight | 3300 kg |
| Download Brochure 1 Download Brochure 2 |
